LPMS-U3

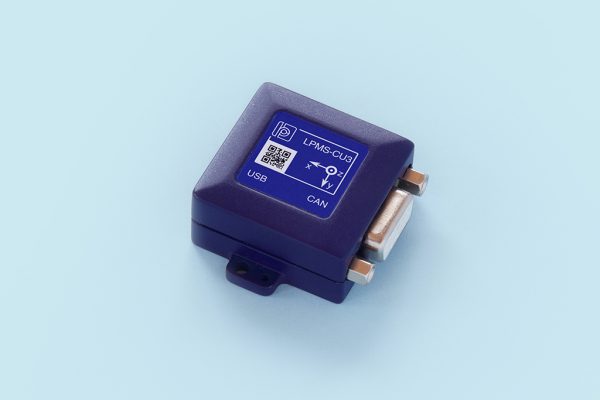

The LPMS-U3 is a miniature 9-axis IMU / AHRS with multiple wired interfaces. A 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer drive high-speed orientation and relative displacement measurements. An on-board 32-bit DSP handles sensor fusion at up to 500 Hz.
Key features
- USB, RS232, TTL, and CAN-Bus connectivity
- 9-axis sensor fusion with low drift and high-speed output
- Temperature and barometric pressure sensors for altitude
- Miniature form factor: 34 × 34.5 × 15.7 mm, 17.6 g
- Configurable via LPMS-Control2
- CANopen support (CU3 variant)
Variants
- LPMS-CU3 - USB 2.0 + CAN Bus
- LPMS-URS3 - USB 2.0 + RS232
- LPMS-UTTL3 - USB 2.0 + TTL / UART
All three variants share identical 9-axis sensors, on-board sensor fusion, and plastic OEM enclosure - choose by host-side interface.
Specifications
| Parameter | Value |
|---|---|
| Orientation range | Roll: ±180°, Pitch: ±90°, Yaw: ±180° |
| Resolution | 0.01° |
| Accuracy | < 0.5° static, < 2° RMS dynamic |
| Data rate | Up to 500 Hz |
| Power | 5-18 V DC |
| Temperature | −20 to +80 °C |
| Accelerometer | ±20 / ±40 / ±80 / ±160 m/s², 16-bit |
| Gyroscope | ±125 to ±4000 °/s, 16-bit |
| Magnetometer | ±2 / ±8 gauss, 16-bit |
Applications
Size- and cost-sensitive machine and human motion measurement in both industrial and research contexts.
