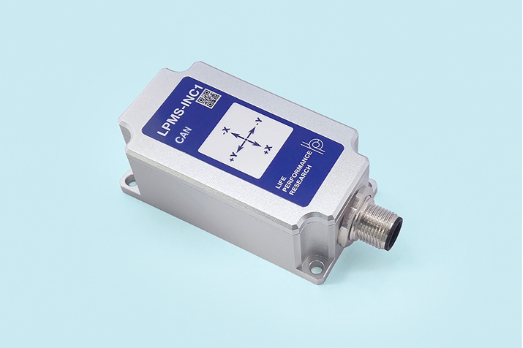

LPMS-INC1: High-Precision Dual-Axis Inclinometer with RS232 or CAN
The LPMS-INC1 is a high-precision dual-axis inclinometer for accurate tilt and inclination measurement in industrial applications. It uses MEMS technology with integrated filtering and calibration algorithms for stable real-time readings, and outputs raw acceleration, calibrated acceleration, inclination, and temperature over multiple interfaces.
Key features
- Dual-axis MEMS-based inclinometer for high-precision tilt measurement
- Integrated filtering and calibration algorithms
- Real-time data output for dynamic monitoring
- RS232 and CAN (available now); RS485 and TTL in future variants
- Reliable performance in harsh industrial environments
Variants
- LPMS-INC1-RS232 - RS232 up to 921,600 bps - 240 mW
- LPMS-INC1-CAN - CANopen up to 1 Mbps - 300 mW
Both variants share identical 74 × 40 × 28.5 mm aluminium housing, ±90° dual-axis range, and 0.011° RMS accuracy - choose by host-side interface.
Specifications
| Parameter | Value |
|---|---|
| Size | 74 × 40 × 28.5 mm |
| Weight | ~184 g |
| Measurement range | X: ±90°, Y: ±90° |
| Resolution | < 0.001° (float 32-bit) |
| Accuracy | 0.011° RMS |
| Data rate | 5-500 Hz |
| Power | 5-36 V DC; 240-300 mW @ 12 V |
| Temperature | −20 to +85 °C |
| Housing | Aluminum, IP67 |
Applications
Engineering machinery (stability monitoring and control), energy and electric power (structural health and equipment alignment), bridge construction (inclination tracking for safety and stability).
