LPMS-AL3

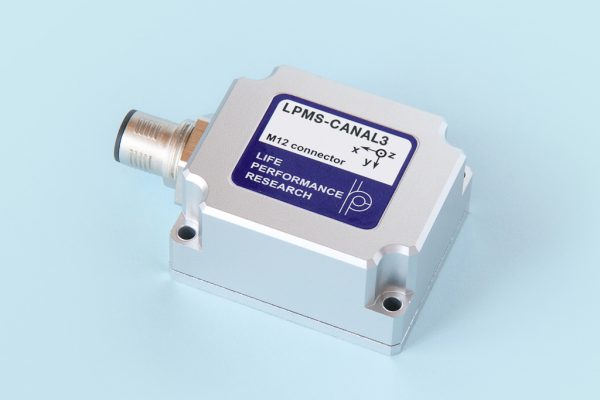

The LPMS-AL3 is a 9-axis waterproof IMU / AHRS with multiple connectivity options. A gyroscope, accelerometer, and magnetometer feed an on-board 32-bit DSP for low-drift orientation measurements, in a rugged IP67 aluminum enclosure suitable for harsh industrial environments.
Key features
- CAN Bus, RS232, TTL / UART, and USB interfaces
- IP67-rated waterproof aluminum housing
- Three variants optimized for different communication protocols
- Real-time 500 Hz sampling and output
- CANopen support and customizable messaging
- Compact form factor: 50 × 42 × 25 mm
Variants
- LPMS-CANAL3 - CAN Bus up to 1 Mbps (CANopen / Sequential CAN)
- LPMS-RS232AL3 - RS232 up to 921,600 bps (LP-BUS / ASCII)
- LPMS-TTLAL3 - TTL / UART up to 921,600 bps (LP-BUS / ASCII)
All three variants share identical 9-axis sensors, 500 Hz sampling, and IP67 waterproof aluminium housing - choose by host-side interface.
Specifications
| Parameter | Value |
|---|---|
| Orientation range | Roll: ±180°, Pitch: ±90°, Yaw: ±180° |
| Resolution | 0.01° |
| Accuracy | < 0.5° static, < 2° RMS dynamic |
| Max data rate | 500 Hz |
| Power | 5-18 V DC |
| Temperature | −20 to +80 °C |
| Weight | 106.8 g (±4 g) |
| Connector | M12 8-pin |
| Gyroscope | ±125 / ±250 / ±500 / ±1000 / ±2000 / ±4000 °/s |
| Accelerometer | ±2 / ±4 / ±8 / ±16 g |
Applications
Industrial machinery, robotics, outdoor equipment, and other applications requiring ingress protection and multi-protocol connectivity.
Downloads
- FusionHub - sensor control and data acquisition software
- Datasheet (EN) - LPMS-CANAL3
- Datasheet (EN) - LPMS-RS232AL3
- Datasheet (EN) - LPMS-TTLAL3
- Datasheet (JP) - LPMS-CANAL3
- Datasheet (JP) - LPMS-RS232AL3
- Datasheet (JP) - LPMS-TTLAL3
- 3D mechanical file (AL3 series)
- LPMS3-series documentation portal
- LPMS Data Acquisition Software
